Concertina Wire -Double Coil Concertina Razor Wire (CBT 60) - CBT 45-High Security Level Concertina Wire-Low-Medium Security Level

Concertina Wire is a type of razor barbed wire fixed in sprial or "concertina" shape ideal for High Security Fencing Tops.

Concertina Wire Features
1, Concertina wire is extremely durable with hot dipped zinc coating meeting international standard for corrosion protection;
2, Concertina wire provides high security as the wire is fabricated from high tensile wire which cannot be cut with standard cutting tools such as utility knife or saw blades while the high tensile steel wire offers high strength and flexibility for easy installation;
3, Concertina wire is fabricated in coils that can extended at least 50 feet (15.2 m) without permanent distortion, can be mobile fencing barriers and used repeatedly;
4, Concertina Wire is supplied in rolls and formed of a multitude of razor-sharp barbs at close interval, forming a high security anti climbing tops for a variety of steel fencing panels.

Concertina Razor Barbed Wire Quality Standards
We supply concertina wire products meeting Quality certification as listed below, but not limited to these:
• ASTM A240/A240M. Standard Specification for Chromium and ChromiumNickel Stainless Steel Plate, sheet, and Strip for Pressure Vessels and for General Applications, 2020.
• ASTM A478. Standard Specification for Chromium-Nickel Stainless Steel Weaving and Knitting Wire), 1997, R 2019.
• ASTM A580/A580M. Standard Specification for Stainless Steel Wire, 2018
• ASTM A666. Standard Specification for Annealed or Cold-Worked Austenitic Stainless-Steel Sheet, Strip, Plate, and Flat Bar, 2015 x ASTM A764. Standard Specification for Metallic Coated Carbon Steel Wire, Coated at Size and Drawn to Size for Mechanical Springs, 2017
• American Society of Testing Materials (ASTM) A 641-82 – Specifications for Zinc Coated (Galvanized) Carbon Steel Wire, or equivalent
• American Society of Testing Materials (ASTM) A 475 – Zinc Coating Weight for galvanized Wire, or equivalent
II. U.S. DEPARTMENT OF DEFENSE. DOD
• MIL-A-A-59924. Barbed Tape, Concertina (wire reinforced long barb), 2013
• MIL-A-A59926. Barber Tape, Concertina (Non-reinforced long barb), 2013

By providing different concertina wire materials and combining uses of Concertina wire with various steel mesh fencing panels, we can supply fencing solutions of varied security levels.

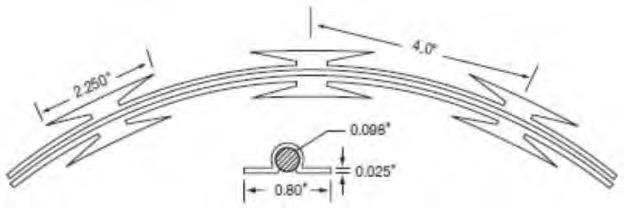

Low-medium Security Level Concertina Wire

Technical Specifications
a. Barbed tape concertina complies with ASTM F1910 or equivalent.
Technical specification:
1. The Concertina wire supplied is fabricated from barbered tape made of Stainless-steel AISI 430 series complaint with ASTM A240/A240M or equivalent.
2. The core wire made of Galvanized steel per ASTM A764, finish 2, class II, type B, minimum tensile strength 222,000 psi (1,517 Mpa).
3. Barbed tape thickness: 0.60 mm +/- 0.05 mm
4. Core wire: 2.5 mm +/- 0.1 mm
5. Barb length: 65 mm +/- 2 mm (tip to tip)
6. Barb width: 21mm +/-2mm)
7. Blade Spacing: Clusters of 4 needle sharp barbs needs to be (100 mm+/- 2mm) on center along the spiral turns.
8. Concertina clip: to withstand minimum pull load of 200 lbs (90.72 Kgs).
9. Barbed tape wrapped: 230 degrees around core wire.
10. Coil Dimension:

Diameter (Upstretched)

Rolling length

Coil Loops

Clips/Spiral

Coil spacing

966mm+/-50.8mm

15m+/-3.0m

81-101

5

305mm+/-50.8mm




Concertina wire-High Security Level (No. of stretched meters per roll is 15±3 meter, coiled not linear)

Specifications for High Security Level Concertina Wire

a) The barbed tape concertina wire long barb fabricated from Stainless steel AISI 300 series per ASTM A666.

b) Barbed tape concertina shall comply with MIL-A-A59926 and ASTM 1910 specifications or equivalent.

Technical specification:
1. Barbed tape thickness: 0.60 mm +/- 0.05 mm
2. Barb length: 65mm +/- 2 mm (tip to tip)
3. Barb width: 21mm +/-2mm)
4. Blade Spacing: Clusters of 4 needle sharp barbs needs to be (100 mm+/-2mm) on center along the spiral turns.
5. Concertina clip: to withstand minimum pull load of 400 lbs (181.44 Kgs).
6. Minimum Tape Material wide prior to forming: 1.21 inch. (30.73 mm)
7. Coil Dimension


Diameter (Upstretched)

Barb Clusters per loop

Stretch Length (Yield)

Coil Loops

Clips/Spiral

Coil spacing

762mm+/- 50.8mm

19+/-1m

15m+/- 3.m

101

5

305mm+/- 50.8mm

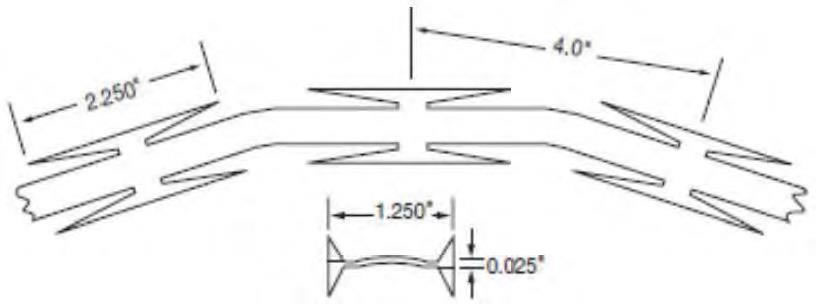

High security concertina wire



Supply of Concertina Barbed Wire for Customers in Tunis

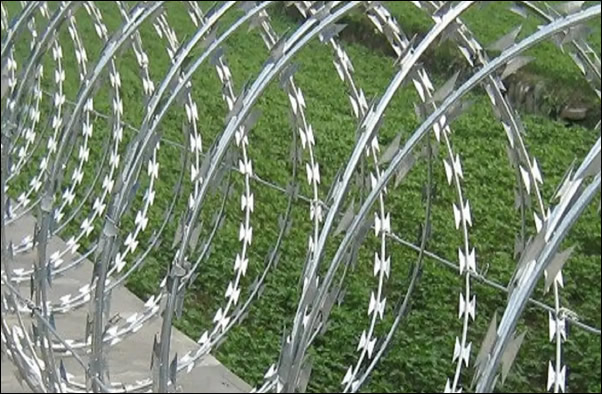

Hot Dipped Galvanized Concertina Barbed Wire in 56 Spirals
Concertina barbed wire roll
Hot dip galvanized
Diameter: 900mm
Core (central wire): 2.4 mm
Blade (L / l): 22 mm / 15 mm
Spacing: 34 mm
Spirals: 56
Roll length: 10m

Concertina Wire For Pakistan Fencing Project -CBT-45

Specification of Concertina Barbed Wire
Thickness:0.5+0.05
Wire Dia: 2 To 2.5
Barb Length: 28
Barb Width: 15
Barb Spacing: 45+1

Supply of Galvanized Concertina (Razor) Wires

Galvanized Concertina razor wires
Roll Diameter: 60 cm
Roll Length: 15 m
Thickness/blade: 0.5 mm
Wire diameter: 2.6 mm
Quantity of zinc: 40-50 G/m2
Stretching/resistance: 800-1000 Mpa


Diameter: 100 cm
Length: 15 m
Thickness/blade: 0.5 mm
Wire diameter: 2.6 mm
Quantity of zinc: 40-50 G/m2
Stretching/resistance: 800-1000 Mpa

Double Coil Concertina Razor Wire (CBT 60) - CFR Doha For Qatar

SS 430 Double Coil CBT 60 Concertina Razor Tape
ASTM A240/A240M (Core Wire/SS430)
ASTM A478 (CBT -60 Sheet/SS430)

Product Decription and Specifications:
Blade CBT-60 Stainless Steel 430 Concertina Razor Tape

Double Coil Concertina Razor Blade
Blade Style: CBT-60( SS430/ASTM A240/240M)
Thickness: 0.6 ± 0.05 mm
Wire Dia:2.5 ± 0.1 mm( SS430/ASTM A478)
Barb Length : 58-62mm ±1
Barb Width: 31-33mm ± 1
Barb Spacing 102mm ± 1

Coil Details:
Outsside Coil Diameter After Opening Ø750mm, Single Coil Concertina razor tape,  56 loops, no  clips Single Coil , approx. 11-13mtr per roll by mantaining the Concertina Coil dia after opening
Core wire:
diameter: 2.5 mm,  Minimum Tensile Strenght :9.68MPa,
Grade: SS430 as per ASTM A478
Blade:
CBT-60, blade : 0.6 mm thick, SS430 AS PER ASTM
A240/A240M Hardness Range of Rock Well :37-45 N
Including : SS430 TWISTABLE TIE WIRE,  ( LOW Tensile ) for Double Coiling
High Quality Water Proof Packing

Outsside Coil Diameter After Opening Ø600mm, Single Coil Concertina razor tape,  56 loops, no  clips Single Coil  , approx. 11-13mtr per roll by mantaining the Concertina Coil dia after opening
Core wire :
diameter: 2.5 mm,  Minimum Tensile Strenght :9.68MPa ,
Grade: SS430 as per ASTM A478
Blade:
CBT-60, blade : 0.6 mm thick, SS430 AS PER ASTM A240/A240M Hardness Range of Rock Well :37-45 N
Packing: Rolls in High Quality Water Proof Packing
