Welded Steel Wire Mesh Fencing System is composed of welded mesh panels, steel fence posts, accessories （bolts, nuts, clamps, caps and more） and barbed/concertina wire toppings.
Welded Mesh Fencing Panels

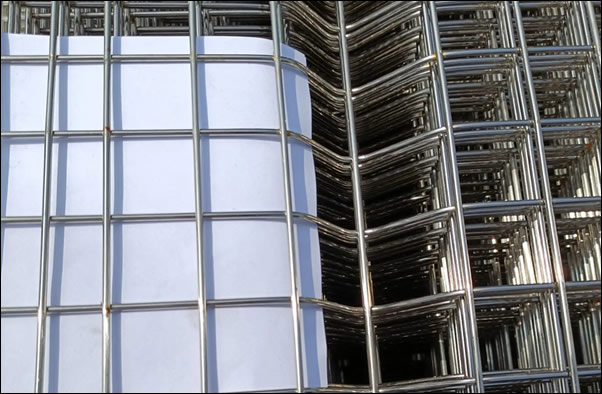

Welded wire mesh fence is made of metal wires welded frimly together in a lattice structure to creat a strong and secure barrier. Welded wire mesh is galvanized and plastic coated, depending on the application. Galvanized fencing is suitable for outdoor gardens, pool perimeters, and other similar applications, while plastic coated welded mesh fences are typically used for applications when decorative effect is considered. The colour of the coating for welded wire mesh fences can vary from black, green, white, and many other colours, depending on the buyer's preference.
Materials:
Welded wire fencing mesh is commonly constructed from galvanized steel wire welded together at each intersection to form a square or rectangular opening grid. Galvanized welded fencing mesh is suitable for many applications, including residential and industrial fencing, security barriers, and animal containers. The gauge of the wire used can vary based on the requirements of the application, the thicker the wire diameter the stronger the mesh. The mesh size of the fence can also be customized.
Metal Welded Fence with PVC finish Coated
- Type: PVC coated galvanized iron welded wire mesh
- Wire Thickness: 2.5mm
- Mesh Opening: 50mm x 50mm

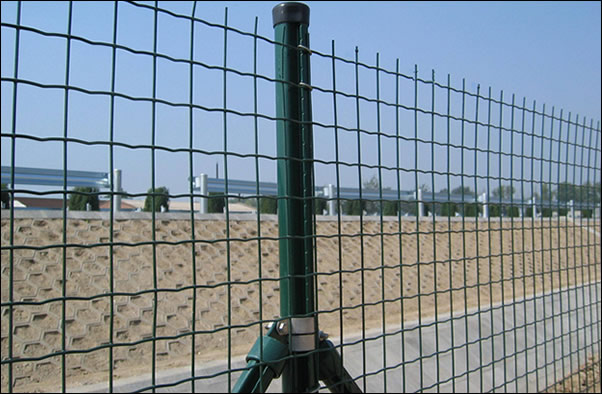

Welded wire mesh fences with fusion bonding plastic coating offer better corrosion resistance and long-term durability. PVC coated welded mesh fencing system is popularly used for highway and railway security and protection.
Fence posts
The fence posts include line post, corner post and top rails.
The posts are installed usually with concrete or with a specialized mounting system. Posts should be spaced at regular intervals, to ensure that the fence is secure. Depending on the desired height and size, posts should be spaced 4-10 feet apart.
All materials including the welded wire mesh and posts are hot dipped galvanized steel and PVC coated.
Security Fencing Topping:
Welded mesh fence system topped with concertina coils and barbed wires are used for high security uses.
Barbed Tape Concertina/Razor Coil security topping can be supported by Y arm brackets to be applied to the top of the fence.
Concertina wire coil numbers and barbed wire coil numbers vary according to requirements.
Welded wire mesh fencing in Galvanized Finish

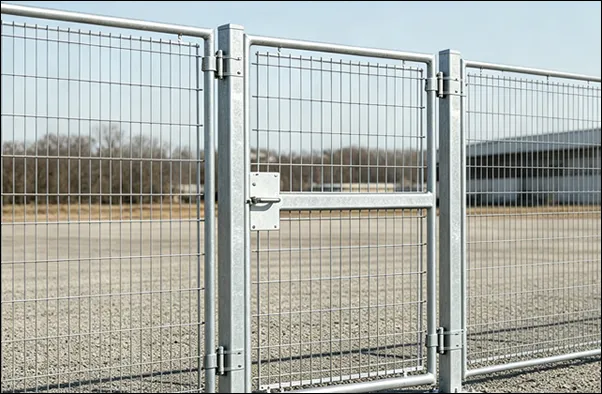

Welded mesh sheet + posts + gates
Gates:
walk access gates
vehicules access gates
Steel posts: Round posts and square post accessories
Welded wire mesh
Wire Diameter: 4.0mm + 4.0mm
Opening Size: 100*12.5
Sheet Sizes (H x W): 1.5m x 2.5m / 2m x 2.5m / 2.5m x 2.2 / 3m x 2.2m

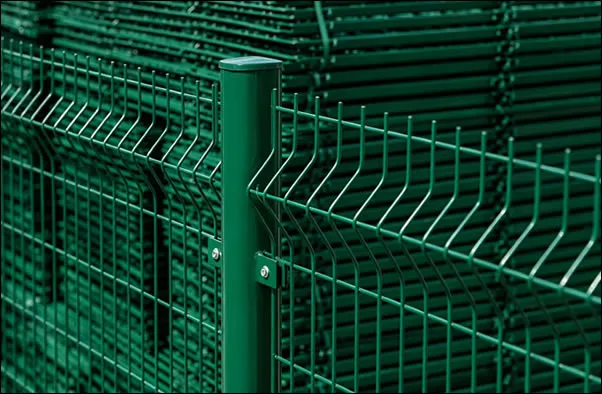

Green PVC Coated WELDED MESH FENCING SYSTEM: Welded Mesh Panel + Posts + Accessories
Material Hot Dipped galvanized Steel wire
Surface treatment Galvanized + PVC coated welded mesh panel,
double corrosion resistance
Wire diameter:
5.00mm Horizontal wire x 5.00mm vertical wire
5.50mm Horizontal wire x 5.50mm vertical wire after
PVC coating
Mesh size: 75mm (horizontal) x 150mm (Vertical)
Panel Size: 3075mm Length x 1800mm Height V shape
reinforced folding design (3 curves)
Spacing : approximately 3.00mm centers
Post size 60x60x1.5mm Thick SHS
Finish
Hot Dipped galvanized as per BSEN ISO 1361
Polymer organic coated in green colour250 to 300
micrones
Standards: Welded mesh Galvanized wire coated as per EN 10244-2 Class D
Accessories Material clamps GI nuts & bolts, suitable post caps

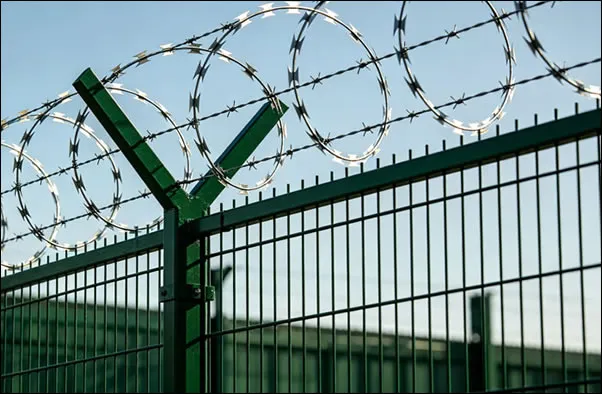

Welded mesh fence with razor blade protection top
Welded Fence Mesh+ Posts + Gates+Accessories + Barbed Wire Coils + Razor Blade Tape
Fence Materials:
All fence materials
complying with ASTM A-53 and to be galvanized and pvc coated after manufacture.
PVC COATED WELDED MESH
| Wire Diameter Before PVC / after PVC | Mesh | Fence height | Fence Width | No. of curve | Post height |
| mm | mm | m | m | - | m |
| 4/5 | 50 x 150 | 2.0 | 2.2 | 4.0 | 2.6 |
SPECIFCATION FOR FENCE POST:
HOT DIP GALVANIZED PVC COATED SQUARE:
50 MM X 50 MM X 3 MM X 2.6 M width 6 clips and 1 cap.
FENCE POST SPECIFCATION
| Fence Parts | Size | Description |
| Line post | 89.0 mm 2.65 mtr | Post placed at every 3.0 meters. O.D x 5.5 mm Thk. ASTM A53 SCH – 40 G.I pipe. Height – ( 2.0 mtr above the ground level + 0.65 Mtr buried in to the ground + 0.35 mtr "Y" crank Extension) |
| Pull post | 89.0 mm 3.0 mtr | Post placed at every 45 meters. C/C O.D x 5.5 mm Thk. ASTM A53 SCH – 40 G.I pipe. Total height – ( 2.0 mtr above the ground + 1.0 mtr buried in to the ground |
| Corner post | 89.0 mm 3.30 mtr | Post placed at corner and change in direction location. O.D x 5.5 mm Thk. ASTM A53 SCH – 40 G.I pipe. Total height – ( 2.0 mtr above the ground + 1.0 mtr buried in to the ground |
| End post | 89.0 mm 3.30 mtr | Post placed at fence start and end location. O.D x 5.5 mm Thk. ASTM A53 SCH – 40 G.I pipe. Total height – ( 2.0 mtr above the ground + 1.0 mtr buried in to the ground |
| Horizontal Rail | 65 x 65 x 8 | Mm thickness mild steel angle. Length suitable for 3.0 mtr C/C. 2 nos for pull & corner post. 1 No for end post. |
(Diagonal Brace) Truss rod |
42.0 mm | O.D x 3.6 mm Thk. ASTM A53 SCH – 40 G.I pipe. Length suitable for 3.0 mtr C/C. 2 nos for pull & corner post. 1 No for end post. |
| Top Rail | 42.0 mm | O.D x 3.6 mm Thk. ASTM A53 SCH – 40 G.I pipe. Total height – 6.0 mtr |
POST and Accessories: SPECIFCATION
| Fence Parts | Size | Description |
| Stretcher Bar | 25 x 5 mm | Thk.M.S flat weaved through end mesh and secured to the post after stretching the fabric at pull / corner and end post. 2 nos for corner post & one no. for straining & end post. |
| Light Duty Single Extension Crank | 2.0 mm | Light duty single arm crank for intermediate post having slots for barbed wire with M8 G.I bolt & nut. Vertical Height – 0.3 mtr Inclined length - 0.425 mtr (45 deg inclination) |
| Heavy Duty Single Extension Crank | 50 x 50 x 5 | M.S angle – single arm crank for straining / corner / end post holes for eye bolt. Vertical Height – 0.3 mtr Inclined length - 0.425 mtr (45 deg inclination) |
| Accessories | 3.mm thick Sheet | Brace bands: Used to secure line wire, short winders, rails to the fence posts at corner and end post. Double Clamps: Used to secure short winders, horizontal, rail, truss rod at pull post. Tension bands: For secure the stretcher bar. Rail End Cap: placed both side of the rails. Short winder: Used to tightening line wires. SS Nut & Bolts (carriage bolts): For all fixing. Pipe Sleeve: For connecting top rail. |
| Finish | All pipes are hot dip Galvanized as per ASTM A 53 & other metals, accessories are hot dip Galvanized as per ASTM A 123 & A 153 |
Razor blade topping: SPECIFICATIONS
Topping Supports Mounting Bracket
50mm x 75mm x 6mm x 75mm long mild steel angle to BS4848 with 12mm diameter holes for fixing to posts and for topping mounting.
Protective finish to be hot dip galvanised to BS729.
Topping Flexible Rubber Bushes
50mm outer diameter, 12mm inside diameter x 30mm long rubber sleeves to BS4255.
Topping Support Arms
50mm x 50mm x 5mm x 600mm long mild steel angle to BS4848 with 12mm diameter holes for flexible rubber bushed and 6mm vertical slots for barbed razor tape.
Protective finish to be Hot Dip Galvanised to BS729.
Security Topping
BTO-18 razor blade:
18mm wide flat stainless steel 316 razor tape with both edges cut to a double barbed profile at 25mm centres and:
(i) Crimped to a 2.5mm diameter stainless steel spring core wire with a wraparound of 220-240 degrees
(ii) Razor tape manufactured as per ASTM F1379-95 standards and have a minimum tensile strength of 1350 MPA
(e) Topping
(i) Bolt to posts.
(ii) Bolt to mounting brackets through flexible mounting ensuring flexible mountings
(iii) Extend barb tape coil so that coils are placed at centres of arms.
(iv) Secure to arms at each point of contact with hog rings/tying wire and clip adjacent ends to coils with fixing clips.
