V-Mesh Welded Wire Fencing System is used for perimeter security and durable, high-visibility boundary protection. The welded wire panels are manufactured with horizontal "V" shaped folds pressed into the mesh during production. V folds act as structural ribs, making the fencing panels more resistant to bending and deformation.
Materials & Finish:
Manufactured from high-tensile steel wire, V mesh panels are hot-dip galvanized + powder coated.
The fencing components(welded mesh and posts) are typically pre-galvanized and then finished with an electrostatic powder coating.
Features / Why choose V mesh fencing:
V mesh welded fence panels provide increased transverse stiffness, superior resistance to impact and bending compared to flat mesh panels;
Galvanized and powder coated V mesh panels offer exceptional rust resistance and long-term performance in harsh outdoor environments;
V mesh panel fence offers High-Visibility Design, ideal for security monitoring, CCTV integration, and perimeter surveillance;
Modular v mesh panels allow for easy and rapid installation with various post types, brackets and razor wire tops.
V-mesh Fencing Construction
Main components:
Welded mesh panel with V folds / Reinforcement Ribs
Post and Clip System for modular panels fixings
For high security fencing purpose, "Y" or "L" shaped arms attached to the top of the posts to support concertina or barbed wire.
Application:
V mesh fencing panels are widely used for airport, logistics, public infrastructure and commercial property security and perimeter safety uses.

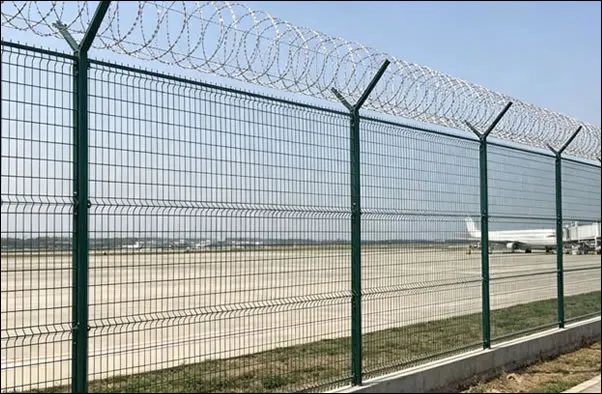

Airport security fencing with concertina wire anti-climbing top barrier
Eurofence Panel (with 3-V):
Eurofence welded mesh panel can be fixed with round posts and square post accessories
Materials:
Galvanized and powder coated material
Technical specifications:
a. Wire Diameter 4,5mm
b. Mesh size: 50 x 100 mm
c. Dimensions: H:250 x L: 225cm
d. Pre Galvanised Min: 40-60gr/m2 zinc
e. Color: RAL 6005 (Electrostatic Powder Coated – 80/120 microns)
Eurofence Box Section Main Post (on concrete basis):
a. 60x60x2.5 mm H: 275cm
b. Pre Galvanised Min: 40-60gr/m2 zinc
c. Base Plate: 15x15cm h:5mm
d. Color: RAL 6005 (Electrostatic Powder Coated – 80/120 microns)
"L" Bar with accessories for making post "Y" shape:
a. 50x50x5mm – 50cm Pre Galvanised Min. 40-60gr/m2 zinc
b. Color: RAL 6005 (Electrostatic Powder Coated – 80/120 microns)
4. Metal Clips (6pcs for H:250cm Panel)
Fence fittings:
Metal Cap (1pc Per Post)
Steel Dowel (4pcs Per Post)
Eurofence panel topping:
Concertina Wire 600mm
