Steel fencing gates are typically used with the metal fencing panels for allowing entrance of vehicles and pedestrians. Steel fencing gates can be customized in double, single or sliding gates. Steel fence gate systems are manufactured using an exclusive electro-forged welding process that provides complete penetration of the cross member. The fencing gates mostly have a hot-dip galvanized finish with a polyester powder coating that provides the best corrosion protection available.

Steel fencing gates are made from durable steel frames with mesh or tubular infill panels available in various sizes to meet the particular fencing needs. We provide customers with a variety of the size, style, and designs of security gates products.

Steel fencing gates offer many advantages over wood or vinyl fences, such as greater durability, better security, a longer service life, and lower maintenance costs. Steel fencing gates are more secure than other types of fencing because they are difficult to climb over or break through. Additionally, steel fencing gates are fire resistant and require less maintenance than other materials. They are available in both flat and arch designs, which can provide a more aesthetically pleasing look to any property. The size and weight of steel fencing gates typically range from 8-10 feet in length and 4-6 feet in height.

Steel Fencing Gates Materials and Classifications

1, Black vinyl coated steel fence gates: 3.5'x5' black vinyl coated metal fence gates and other sizes.
2, Hot dipped galvanized steel gate:
Finish: RAL 7005 Matt
Comprising the following :
a) 50 x 10mm Steel Frame
b) 50 x 25 x 2mm Steel Tube Infill every 52mm +- 3mm
c) External quality lock with cylinder and latch
d) Powder coated level and handle
e) Welded Hinges

1000 x 1750 mm
1000 x 2190 mm
1000 x 2100 mm
1000 x 2000 mm

Fence gate for FENCE:

Hot dipped galavnized steel fence in RAL 7005 semi gloss:
a) 50 x 10mm Steel Frame
b) 50 x 25 x 2mm Vertical infill at every 50mm +-3mm
c) 25mm Dia 300mm Long SPIGOT

Steel Palisade Fencing Gate - Top pointed splayed Palisade steel gate for complete perimeter fencing:

Steel palisade gate 6 000mm wide x 2 450mm high: Double leaf gate, each size 3 000mm wide x 2 450mm high fabricated from 75 x 75 x 4mm angle iron frame. Assorted SHS and MS Plate: complete with all iron monger and locking devices: including one coat of primer and two coats of paint

Steel palisade gate size 1 200mm wide x 2 100mm high comprising 1 no openable leaf fabricated from 75 x 75 x 4mm angle iron frame complete with all iron monger and locking devices including one coat of primer and two coats of paint

Tube Frame Design Fence Gate Systems

Steel tube frame fencing gates


This fence gate systems utilize a tube frame design with steel, aluminum or stainless steel infill panels and louvers. We supply a variety of panel style fencing gate made from high-strength steel tubing. The gate has a continuous frame with an integrated gate post that allows for greater stability and strength. It also incorporates a self-locking latch to ensure security when the gate is closed. The gate can be customized to fit any space, and its overall design allows for easy installation and low maintenance. Tube frame design gates are typically 8-10 feet wide and 6-8 feet tall. In a variety of colors and finishes. Tubular steel gates equire minimal maintenance, making them an ideal choice for residential, commercial, or industrial applications.

Integrated gate system
Integrated gate systems are available in swing gates, V-wheel roller gates or monorail track cantilever gates. These gate systems are designed to work efficiently and trouble-free in virtually any setting. Integrated steel gate systems are constructed using durable steel materials for the frame, sliding or swing gates, and additional accessories.

Infill panels can be chain link mesh, welded mesh.

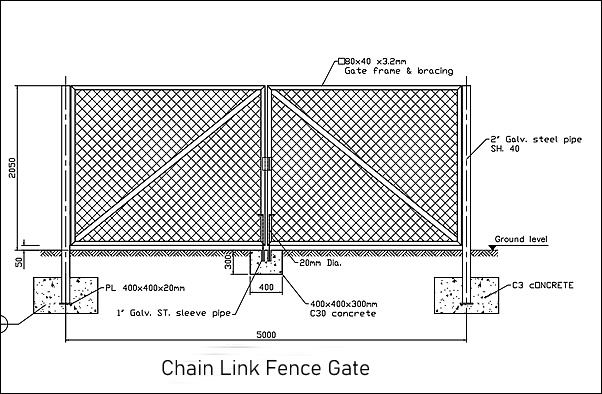

Integrated gate with chain link fence infill panels

Steel gates can be galvanized, painted, or powder coated to provide additional protection against rusting or corrosion. Depending on the size of the gate and the particular area of usage, certain components such as hinges and locks may require additional reinforcement with heavier gauge steel or even aluminum.

Standard Steel Fencing Gate System
Standard gate system available in many sizes and in a variety of styles. Custom fabrication services are available to complete even the most complex metal structures. Gates range from small designs such as single or double swing-style gates to larger sliding gates. Larger gates may also feature specialty hardware such as automatic openers or locks to provide added security.

The process of installation typically involves digging post holes, inserting posts and rails into the holes, connecting the fencing panels to the posts, installing the gates, and making sure the fencing is securely fastened.

The most popular and fashionable styles of steel fencing gates are ornamental or decorative fencing gates. The plastic coatings can come in a variety of colors, such as black, white, green, and brown.
