Triple Coil Concertina Razor Wire is used in high-security perimeter fencing system and military barrier uses. The "pyramid" shaped concertina coils are stacked concertina razor wire coils designed to create an impenetrable anti climbing and anti-cutting barrier.
Concertina Razor Wire (Triple Coils)
Base Coil Diameter: 73 CM
Top Coil Diameter: 98 CM
Total height: 100 cm.
Configuration: Coils jointed in pyramid shape
Material: Hot Dipped Galvanized
Blade Type:
BTO-22
Thickness: 0.5mm more or less 0.05mm
Core wire diameter: 2.5mm
Barbed length: 22mm
Concertina wire loops joining:
Loops of coils must be ties up with"length limiting wire" for keeping the stretching in limits so that it stretch up to desired length without compromising the specified dia of loops.

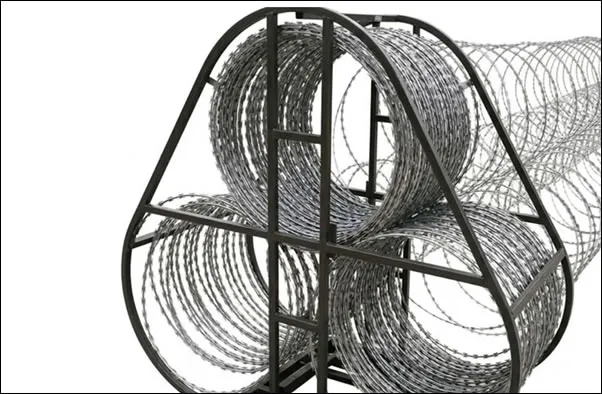

The loops will be joined together with clamps in form of triple coils making Pyramid shape, with hexagonal frame at each end of coil. A Stretch Limiting wire will be tied with coil to keep the stretching in desired length while maintaining the loops dia.
Products:
Specification Details
| Thickness | 0.5+0.05mm |
| Core wire dia | 2.5mm |
| Barbed length | 22mm |
| Barbed width | 15mm |
| Barb spacing | 45+/-1mm |
| Dia of top coil | 98 cm |
| Dia of base coils | 73 cm |
| Total height | 100 cm |
| Length of coil (Meter) in Pyramid Shape | 70 Meter |
| Weight of coil per Meter | 7 Kgs |
| Core wire material | Hot dipped galvanized steel |
| Zn coating thickness on blade material | 120 gm/m2 |
| Tensile strength of core wire | 1500-1600 MPs |
| Anti-rust ability | Corrosion resistant blades |
