BLACK VINYL COATED CHAIN LINK FENCE WITH WIRE DIAMETER 11.5-GAUGE AND 9-GAUGE,MESH SIZE 2x4, 2-INCH,2-1/4-INCH AND 2-3/8-INCH - powder coated black, dark green, biege, many other colors

Vinyl coated chain link fence is a type of chain mesh fence made of galvanized steel wire, then vinyl coated against corrosion typically in dark green or black color. Black powder coated chain wire fence makes an decorative and low-maintenance option for residential and commercial uses.

Vinyl Coated Fence Mesh Rolls and panels: Mesh rolls can be installed with a post system, pre-assembled panels can be installed with base freely for temporary fencing uses.

Powder vinyl coated chain link fence is typically made from galvanizedwire, woven into a Diamond Mesh, and then the wire mesh fabric or panel is covered in a black vinyl coating. The steel wire provides the necessary strength and rigidity while the vinyl coating offers a layer of protection against corrosion, also gives the fence a sleeker, more attractive appearance.

The standard specification of the black vinyl coated chain link fence includes wire diameter ranging from 0.032" to 0.250", mesh sizes ranging from 1" to 4", and options of both galvanized steel and black vinyl coated materials. The diameter of the steel wire used in the construction of a black vinyl coated chain link fence varies according to the grade of the product, but it is usually between 11.5-gauge and 9-gauge. The mesh size of the fence can also vary, with 2-inch, 2-1/4-inch, and 2-3/8-inch being the most commonly used sizes.

Customized specifications
Vinyl Coated Chain Link Fabric 3/8” or 1/4" Inch in Black. Width 36” or 48”. Length 50” Wire Diameter (19#, 20#, 21#, 22# )

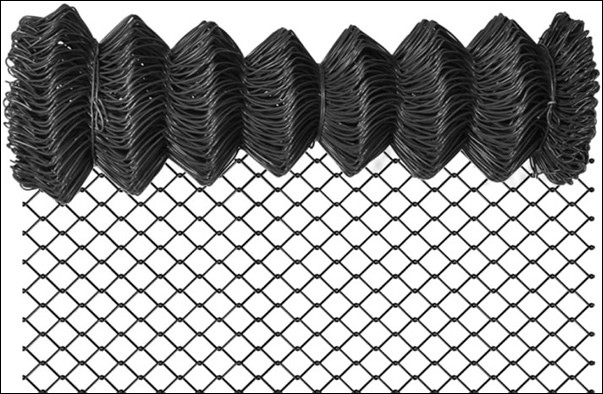

1/4 inch Chain wire mesh galvanized steel coated powder black
Vinyl coated fence panels in green color, 4’ high and 8’ in length, the square mesh is 3 ich and the wire is 4 gauge.

2x4 12ga vinyl coated wire mesh panels in dark green 3 feet high x 6 feet (or five 3’ x 12’ or four 3’ x 16’) for a yard fence project.

Black Vinyl Coated Steel Chain Link Fencing with Chain link Netting Gates:

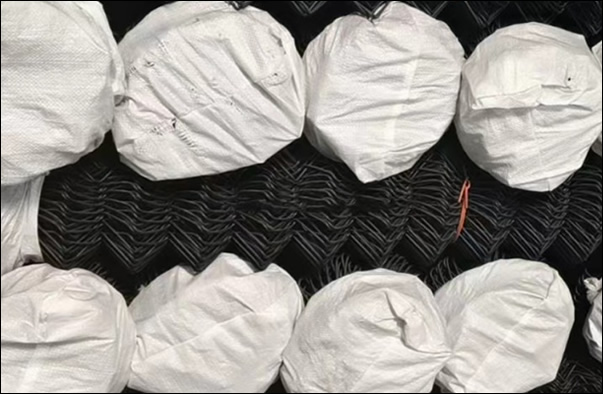

Black powder coated galvanized chain link fence netting
Technique specifications:

a) 1.2mt high black powder coated chain link fencing and gates as follows:

Gate and end posts 40NB galvanized steel powder coated black

Posts 32NB galvanized steel powder coated black

2.4mt centers

Top rail 25NB galvanized steel powder coated black

Attached to posts with black powder coated down fittings
Chain wire galvanized steel black PVC coated, 60x60 diamond

Bottom cable black PVC coated* 3 sets double gates 25NB frame powder coated black
3.2mt opening size, black chain wire infill.

b) Gates is swing type, hinged to swing 180 degrees from closed to open,

complete with frames, latches, stops, keepers, hinges, fabric, braces,

and PVC coating wire mesh(50×50), diameter 4mm.

c) 42 x 42", 42 x 48", 48 x 48", 42 x 60", 42 x 72" single walk fence gate 1 3/8" tubing hot dipped galvanized

12' x 42", 12' x 48", 12' x 60", 12' x 72" double drive fence gate 1 3/8" tubing hot dipped galvanized

6' x 6', 6' x 12' kennel panel 1 3/8" tubing hot dipped galvanized

Comparison between different with vinyl coated and plastic coated fence:
Vinyl Coated Steel Fence: This type of fence is made up of a steel core that is covered in a protective layer of black vinyl. The vinyl helps protect the steel from the elements, making it more durable and long-lasting than other types of fence. Black vinyl coated steel fence tends to be more expensive than common pvc coated fence.
